CONELOG® Surgery

Thought-out range of instruments – easy handling

The CONELOG® and CAMLOG® SCREW-LINE Implants have the same external geometry and are inserted with the same surgery set. Camlog continues this advantage with the PROGRESSIVE-LINE Implants and also offers a surgery set for CONELOG and CAMLOG PROGRESSIVE-LINE here.

The Guide System

Template-guided implantation of CONELOG PROGRESSIVE-LINE and SCREW-LINE Implants can be performed easily and precisely with the Guide System components. Depending on the software used, physiological structures as well as the planned restoration can be taken into account when planning the exact implant position and dimension.

show more show less
CONELOG Guide System drill setsshow more
Drill sets for SCREW-LINE Implants
show more
CAMLOG Guide System drill template with depth stopshow more
Drill template with depth stop
show more

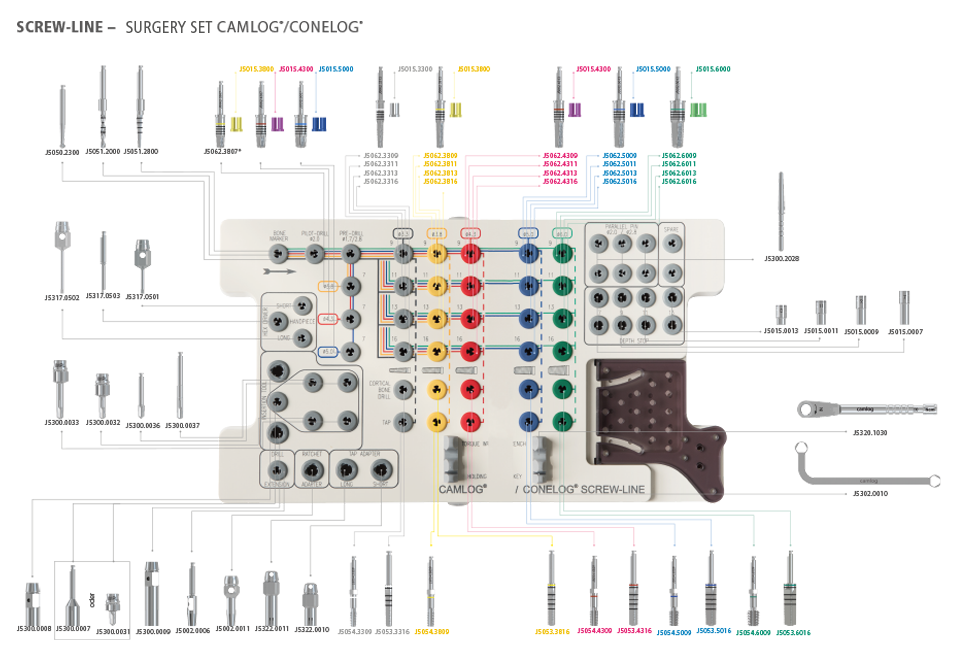

The surgery sets for PROGRESSIVE-LINE and SCREW-LINE contain all the surgical instruments required for implant bed preparation and insertion of CONELOG/CAMLOG PROGRESSIVE-LINE or SCREW-LINE Implants. The drills are arranged according to the surgical protocol and color coded by implant diameter. The exact drilling sequence is supported visually by colored lines marked on the tray. The reusable drills and taps without internal irrigation ensure gentle preparation of the implant bed. The four-edged cutting geometry of the drills do have excellent cutting performance and allows bone chips to be collected for use in simultaneous augmentation. The wash tray CONELOG/CAMLOG PROGRESSIVE-LINE and SCREW-LINE is available for mechanical reprocessing of the surgical instruments.

show more show less
CONELOG CAMLOG Progressive-Line Surgery setshow more
CONELOG CAMLOG Screw-Line Surgery setshow more

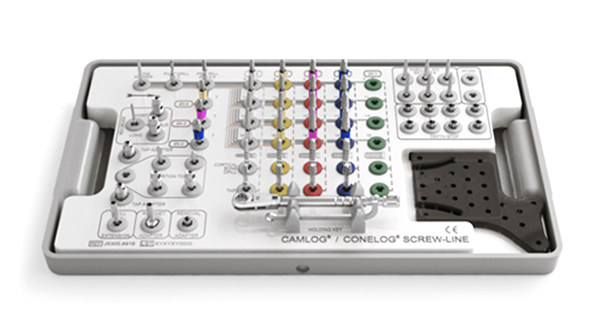

Surgery set SCREW-LINE
Product catalog
The CONELOG Implant System


The ease of use and the quality of the osteotomes of the CONELOG/CAMLOG SCREW-LINE Osteotomy sets are impressive. The substance of local bone can be optimally maintained through direct compression and displacement. Better primary stability of the implants can be achieved in soft bone. The CAMLOG/CONELOG SCREW-LINE Osteotomy sets are available in straight-convex, angulated-convex, straight-concave, and angulated-concave versions.

show more show less

Healing caps for the CONELOG Implant System

CONELOG Healing caps sit on the machined implant shoulder but do not cover it completely. As a result, the hard and soft tissue can be adapted above the shoulder. The healing caps are used according to their indication for single and two-stage procedures. They are available in three geometries (cylindrical, wide body, and bottleneck) and are screwed directly into the implant.

The DEDICAM CAD/CAM service division also offers one- and two-piece customized healing caps with anatomically designed emergence profiles.

The DEDICAM restoration options

show more show less

BioHorizons and Camlog may market products only upon approval by the competent authorities.
Not all products and services may be available in every country.
